Varios Combi Pro

QBeeping sound (Ultrasonic Mode and Powder Mode) - TS18103

A
Cause1
Power was turned on while the Foot Control was depressed.
Remedy1
Release the Foot Control and turn the POWER switch to ON.
Cause2
Abnormal heating of the Control Unit.
Remedy2
Stop operation and leave until Control Unit cools.

QTouch panel does not react well or touched key is not recognized correctly. (Ultrasonic Mode and Powder Mode) - TS18113

A
Cause1
Calibration is slightly misaligned due to static electricity, exogenous noise, etc.
Remedy1
Turn the POWER switch to OFF and then to ON.
Cause2
Key was not touched in the center.
Remedy2
Touch the center of the key.

QWater does not stop / The water level cannot be adjusted (Ultrasonic Mode and Powder Mode) - TS18111

A
Cause1
Damage or wear of the O-Ring.
Remedy1
Follow the procedure in “10-1-5 Chamber Base Connector” to replace the O-Ring.
Cause2
Foreign material has become clogged in the water line.
Remedy2
Perform Auto-Cleaning. If the symptom is still not resolved, contact your Authorized NSK Dealer.

QAlarm sounds are heard, and the Ultrasonic Mode Display (P/E/G) and “ULTRASONIC” blink alternately when the Foot Control button D is depressed. (Ultrasonic Mode) - TS18072

A
Cause
The sensor built in to the Handpiece Holder is dirty and mistakenly detects mounting of the Handpiece.
Remedy
Wipe the sensor clean.

QNo/Poor vibration. (Ultrasonic Mode) - TS18099

A
Cause1
The AC power cord plug is not connected to the wall socket or electricity is not supplied to the wall socket.
Remedy1
Check the connection.
Cause2
The Fuse is burned out.
Remedy2
Refer to "10-5 Replacing the fuse" and replace the fuse.
Cause3
The Tip is not tightened firmly.
Remedy3
Rotate the Tip Wrench until it makes a click sound and cannot rotate any further. If the problem still persists, replace the Tip Wrench as it may be worn out.
Cause4
Worn Tip.
Remedy4
Replace the Tip.
Cause5
The screw parts of the Handpiece and Tip are not clean.
Remedy5
Wipe them clean.
Cause6
The screw parts of the Handpiece are worn out as a result of a long time of use.
Remedy6
Contact your Authorized NSK Dealer.*
Cause7
Power has not been correctly adjusted for the Tip.
Remedy7
Adjust the power so it does not exceed the maximum power level mentioned in Tip-Power Guide or on the Tip case label.
Cause8
The Foot Control is disconnected.
Remedy8
Connect the Foot Control Cord lead correctly.
Cause9
Failure of vibration device in the Handpiece.
Remedy9
Contact your Authorized NSK Dealer.*
Cause10
Failure of internal components of the Foot Control.
Remedy
10
Contact your Authorized NSK Dealer.*
Cause11
The sensor built in to the Handpiece Holder is dirty and mistakenly detects mounting of the Handpiece.
Remedy
11
Wipe the sensor clean.
* Cannot be fixed at clinics, etc.

QThe Tip is bent or broken. (Ultrasonic Mode) - TS18095

A
Cause
Power has not been properly adjusted for the Tip.
Remedy
Adjust the power so it does not exceed the maximum power level mentioned in Tip-Power Guide or the Tip case label.

QThe Tip falls off. (Ultrasonic Mode) - TS18093

A
Cause
The Tip is not tightened firmly.
Remedy
Tighten the Tip until the Tip Wrench clicks.

QNoise from the Handpiece. (Ultrasonic Mode) - TS21060

A
Cause1
Power has not been properly adjusted for the Tip.
Remedy1
Adjust the power so it does not exceed the maximum power level mentioned in Tip-Power Guide or the Tip case label.
Cause2
The Tip is not tightened firmly.
Remedy2
Rotate the Tip Wrench until it makes a click sound and cannot rotate any further. If the problem still persists, replace the Tip Wrench as it may be worn out.
Cause3
Failure of vibration in the Handpiece or the Control Unit.
Remedy3
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QThe Handpiece is overheating. (Ultrasonic Mode) - TS21064

A
Cause1
Power has not been properly adjusted for the Tip.
Remedy1
Adjust the power so it does not exceed the maximum power level mentioned in Tip-Power Guide or the Tip case label.
Cause2
The Tip is not tightened firmly.
Remedy2
Rotate the Tip Wrench until it makes a click sound and cannot rotate any further. If the problem still persists, replace the Tip Wrench as it may be worn out.
Cause3
The screw parts of the Handpiece and Tip are not clean.
Remedy3
Wipe them clean.
Cause4
The screw parts of the Handpiece are worn out as a result of a long time of use.
Remedy4
Contact your Authorized NSK Dealer.*
Cause5
The Irrigation Volume is insufficient or irrigation has stopped.
Remedy5
Irrigate at an adequate volume.
Cause6
Vibration failure in the Handpiece or the Control Unit.
Remedy6
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QNo Irrigation supply and/or unstable Irrigation supply (when using the Bottle) (Ultrasonic Mode) - TS21067

A
Cause1
The Irrigation Tube is twisted.
Remedy1
Straighten the twisted Irrigation Tube.
Cause2
Time to replace the Irrigation Pump.
Remedy2
Replace with a new Irrigation Pump (Refer to 10-2 Changing the Irrigation Pump).

QNo/Poor water supply. (when using External Water) (Ultrasonic Mode) - TS21070

A
Cause1
Water is not supplied to the Control Unit.
Remedy1
Check the water circuit so that water is supplied to the Control Unit. Supply water pressure: 0.1 - 0.3MPa
Cause2
The Irrigation Volume is set to “0.”
Remedy2
Adjust to the adequate Irrigation Volume using the Irrigation Volume setting.
Cause3
Water supply may be unstable when the Irrigation Volume is insufficient.
Remedy3
This is not a malfunction. Increase the Irrigation Volume in the Irrigation Volume setting.
Cause4
Water Filter is clogged with foreign substances.
Remedy4
Replace the water filter with a new one.

QWater leakage. (Ultrasonic Mode) - TS21073

A
Cause1
The Irrigation Tube is not connected correctly.
Remedy1
Firmly insert the Irrigation Tube all the way into the Irrigation Connector.
Cause2
O-Ring at the Handpiece Cord is worn or damaged.
Remedy2
Replace with a new O-ring by following the procedures in "10-1-1 Handpiece Cord."
Cause3
The water circuitry in the Control Unit is damaged.
Remedy3
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QHandpiece LED does not illuminate. (Ultrasonic Mode) - TS21076

A
Cause1
The Handpiece is not connected to the Handpiece Cord correctly.
Remedy1
Firmly insert the Handpiece all the way into the Handpiece Cord.
Cause2
Failure in the Control Unit.
Remedy2
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QAlarms are heard, and “POWDER” and the tooth icon blink alternately when the Foot Control button D or B is depressed. (Powder Mode) - TS21079

A
Cause1
The sensor built in to the Handpiece Holder is dirty and mistakenly detects mounting of the Handpiece.
Remedy1
Wipe the sensor clean.
Cause2
Chamber is not attached securely.
Remedy2
Attach the Chamber securely until the confirmation sound is heard.

QConfirmation sound cannot be heard, or the icon that indicates Prophy Mode or Perio Mode is not displayed when the Chamber is attached. (Powder Mode) - TS21082

A
Cause
Failure in the Control Unit (disconnection).
Remedy
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QAir and powder are not supplied. Or air and powder are supplied but the pressure is not strong enough and cleaning power is also weak. (Powder Mode) - TS21085

A
Cause1
The inside of the Nozzle Tip is clogged with powder.
Remedy1
Replace the Nozzle Tip.
Cause2
The inside of the Handpiece is clogged with powder.
Remedy2
Clean the Nozzle base with the supplied Cleaning wire (small) and Nozzle end with the cleaning file. In addition, clean the inside of the Handpiece with the Cleaning wire (large). If powder and air do not flow after being cleaned as described above, perform Ultrasonic Cleaning with warm water. (Refer to “9–3 Ultrasonic cleaning (weekly).”)
Cause3
The inside of the Chamber is clogged with powder.
Remedy3
Remove powder from inside the Chamber by following the procedures in "9–1–5 Chamber and Handpiece Hose".
Cause4
Powder has partially solidified with water, etc., in the air passage.
Remedy4
Remove powder from inside the passage by following the procedures in "9–1–4–2 Auto-Cleaning."
Cause5
Powder container has been left open exposing powder to the air.
Remedy5
Dispose of the powder and use new powder.
Cause6
Water is mixed in supply air.
Remedy6
Open the filter in the air supply circuit to drain the compressor, and check that water has not accumulated inside the air filter and compressor drain.
Cause7
The VCP Element is clogged.
Remedy7
Contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QWater leaks from between the Handpiece and Handpiece Hose. (Powder Mode) - TS21088

A
Cause
The O-ring is chipped.
Remedy
Replace the O-ring in the Handpiece joint section, apply the supplied turbine oil and rub it in with your finger. (Refer to "10-1-2 Handpiece Hose (for Prophy use and Perio use).")

QCannot remove the Chamber because the Lock Button cannot be pressed (Powder Mode) - TS21091

A
Cause
The button is locked
Remedy
Follow the procedure in “Releasing the Lock Button” in “9–1–5 Chamber and Handpiece Hose” to release the Lock. If the symptom is not resolved, contact your Authorized NSK Dealer.*
* Cannot be fixed at clinics, etc.

QCannot close the Chamber Cap. (Powder Mode) - TS21094

A
Cause
Powder is adhered to the threads of the Chamber and/or the Chamber Cap.
Remedy
Clean the threads of the Chamber Cap (Refer to “Cleaning Chamber Cap” in “9-1-5-2 Cleaning and disinfection”).

Varios 970

QNo / Poor vibration 1 - TS21098

A
Probable Cause
The Front Panel does not light, even if the Power Switch is ON.
Cause1
The Power Cord or the Jack is disconnected.
Solution1
Correctly insert the Power Cord or the Jack.
Cause2
The Fuse is burned out.
Solution2
Contact dealer.*
* Repairs cannot be made by the customer.

QNo / Poor vibration 2 - TS21101

A
Probable Cause
The Tip does not generate vibration, in spite of depressing the Foot Control
Cause1
The Tip is not tightened firmly.
Solution1
Tighten the Tip until the Tip Wrench clicks.
Cause2
Worn Tip.
Solution2
Replace the Tip.
Cause3
Power has not been correctly adjusted for the Tip.
Solution3
Adjust the power on the Power Guide or Tip case label. Do not exceed.
Cause4
The Foot Control is disconnected.
Solution4
Connect the Foot Control correctly.
Cause5
Failure of vibrator in the handpiece.
Solution5
Contact dealer.*
Cause6
Failure of internal components of the Foot Control.
Solution6
Contact dealer.*
* Repairs cannot be made by the customer.

QThe Tip is bent or broken. - TS21104

A
Cause
Power has not been properly adjusted for the Tip.
Solution
Adjust the power level on the power guide, as indicated on the Tip case label. Do not exceed the value shown.

QThe Tip is flying away. - TS21107

A
Cause
The Tip is not tightened firmly.
Solution
Tighten the Tip until the Tip Wrench clicks.

QNoise from the handpiece. - TS21110

A
Cause1
Power has not been properly adjusted for the Tip.
Solution1
Adjust the power level on the power guide, as indicated on the Tip case label. Do not exceed the value shown.
Cause2
The Tip is not tightened firmly.
Solution2
Tighten the Tip until the Tip Wrench clicks.
Cause3
Failure of vibration in the handpiece or the Control Unit.
Solution3
Contact dealer.*
* Repairs cannot be made by the customer.

QThe handpiece is overheating. - TS21113

A
Cause1
Power has not been properly adjusted for the Tip.
Solution1
Adjust the power level on the power guide, as indicated on the Tip case label. Do not exceed the value shown.
Cause2
The Tip is not tightened firmly.
Solution2
Tighten the Tip until the Tip Wrench clicks.
Cause3
Failure of vibration in the handpiece or the Control Unit.
Solution3
Contact dealer.*
* Repairs cannot be made by the customer.

QNo Irrigation supply and/or unstable Irrigation supply (Use of Bottle) - TS21116

A
Probable Cause1
The Irrigation Pump is running.
Cause1
The tube twisted.
Solution1
Straighten the twisted Irrigation Tube.
Probable Cause2
The Irrigation Pump is stopping.
Cause
Time to replace Irrigation Pump. (Approx. 500hours after used.)
Solution
Replace with new Irrigation Pump (Refer to 11. (4) Changing the Irrigation Pump).

QNo / Poor water. (Use of External Water) 1 - TS21120

A
Probable Cause
The water does not reach to the Control Unit.
Solution
Check the water circuitry and supply to the Control Unit. Water pressure : 0.1-0.5MPa (1-5kgf/cm2)

QNo / Poor water. (Use of External Water) 2 - TS21123

A
Probable Cause
Check to see if water reaches the Control Unit.
Cause1
The Water Adjustment Knob is closed.
Solution1
Turn the Water Adjustment Knob and adjust to the appropriate volume.
Cause2
Disconnected Irrigation supply at low volume range. (less than 10ml/min.)
Solution2
No problem. Turn the Water Adjustment Knob and increase the Irrigation volume.
Cause3
The Water Filter is clogged.
Solution3
Replace with new Water Filter (Refer to 11. (6) Changing Water Filter (Option) ).

QWater leakage. - TS21126

A
Probable Cause1
Water is leaking from the joint between the Irrigation Tube and the Irrigation Connector.
Cause1
The Irrigation Tube is not connected correctly.
Solution1
Firmly insert the Irrigation Tube into the Irrigation Connector inmost.
Probable Cause2
Water is leaking from the joint between the handpiece and the cord.
Cause2
O-Ring at the handpiece cord is worn or damaged.
Solution2
Replace with new O-Ring (Refer to 11 (3) Changing O-Ring •Handpiece Cord).
Probable Cause3
Water is leaking from the Control Unit.
Cause3
The water circuitry in the Control Unit is damaged.
Solution3
Contact dealer.*
* Repairs cannot be made by the customer.

QHandpiece LED does not illuminate. (Varios 970 LUX) - TS21129

A
Probable Cause1
Tip oscillates, but Handpiece LED turns on and off.
Cause1
The handpiece is not connected into the Handpiece Cord correctly.
Solution1
Firmly insert the handpiece into the Handpiece Cord inmost.
Probable Cause2
Tip oscillates, but Handpiece LED does not turn on.
Cause2
Disconnection in the Handpiece Cord, or failure in the Control Unit.
Solution2
Contact dealer.*
* Repairs cannot be made by the customer.

QStart Beeping - TS21132

A
Probable Cause1
Beeping while power on.
Cause1
Depress Foot Control.
Solution1
Release the Foot Control.
Probable Cause2
Beeping while stopping vibration of Tips.
Cause2
Abnormal heating of the Control Unit.
Solution2
Stop the operation and leave until Control Unit becomes cool.

Varios 170

QNo / Poor vibration - TS21135

A
Item to Check
The Tip does not generate vibration, in spite of depressing the Foot Control.
Cause1
The Tip is not tightened firmly.
Solution1
Tighten the Tip until the Tip Wrench clicks.
Cause2
Worn Tip.
Solution2
Replace the Tip.
Cause3
Power has not been correctly adjusted for the Tip.
Solution3
Adjust the power level on the Power Guide.Do not exceed the maximum indicated on the tip label.
Cause4
Failure of vibrator in the handpiece.
Solution4
Contact dealer.*
* Repairs cannot be made by the customer.

QThe Tip is bent or broken. - TS21138

A
Cause
Power has not been properly adjusted for the Tip.
Solution
Adjust the power level on the Power Guide.Do not exceed the maximum indicated on the tip label.

QThe Tip is flying away. - TS21142

A
Cause
The Tip is not tightened firmly.
Solution
Tighten the Tip until the Tip Wrench clicks.

QNoise from the handpiece. - TS21145

A
Cause1
Power has not been properly adjusted for the Tip.
Solution1
Adjust the power level on the Power Guide.Do not exceed the maximum indicated on the tip label.
Cause2
The Tip is not tightened firmly.
Solution2
Tighten the Tip until the Tip Wrench clicks.
Cause3
Failure of vibration in the handpiece or the Module.
Solution3
Contact dealer.*
* Repairs cannot be made by the customer.

QThe handpiece is overheating. - TS21148

A
Cause1
Power has not been properly adjusted for the Tip.
Solution1
Adjust the power level on the Power Guide.Do not exceed the maximum indicated on the tip label.
Cause2
The Tip is not tightened firmly.
Solution2
Tighten the Tip until the Tip Wrench clicks.
Cause3
Failure of vibration in the handpiece or the Module.
Solution3
Contact dealer.*
* Repairs cannot be made by the customer.

QNo / Weak water 1 - TS21150

A
Item to Check
The water does not reach to the handpiece.
Solution
Check the water circuitry and supply to the Unit Chair.

QNo / Weak water 2 - TS21153

A
Item to Check
Remove the handpiece from the handpiece cord.Water does not come out or only a limited amount.
Cause1
The water adjustment dial is closed.
Solution1
Turn the water adjustment dial and set it to an appropriate water level.
Cause2
The water filter is clogged.
Solution2
Contact dealer.*
* Repairs cannot be made by the customer.

QNo / Weak water 3 - TS21156

A
Item to Check
No / Weak water from the handpiece.
Cause
There may be exogenous material in the hole.
Solution
Air it with the appliances such as syringes from the rear of the handpiece.
If it is still unsolved, contact dealer.

QWater leakage. - TS21159

A
Item to Check
Water is leaking from the joint between the handpiece and the cord.
Cause
O-Ring at the handpiece cord is worn or damaged.
Solution
Apply air from an appliance such as a 3in1 syringe to the rear of the handpiece.
If it is still unsolved, contact dealer.

QHandpiece LED does not illuminate. (Varios 170 LUX) - TS21162

A
Item to Check1
Tip oscillates, but Handpiece LED turns on and off.
Cause1
The handpiece is not connected into the Handpiece Cord correctly.
Solution1
Firmly insert the handpiece into the Handpiece Cord.
Item to Check2
Tip oscillates, but Handpiece LED does not turn on.
Cause2
Disconnection in the Handpiece Cord, or failure in Module.
Solution2
Contact dealer.*
* Repairs cannot be made by the customer.

Kirurgi

Surgic Pro2

QError code: E0 - TS18135

A
Type of error
System error
Cause of error
Self-check error.
Action
Request repair.

QError code: E1 - TS18034

A
Type of error
Motor voltage / current detection error
Cause of error
Extended use under heavy load.
Short circuit in the motor.
Motor cord (power line) failure.
Action
Electrical contact may be insufficient.
Securely re-connect the motor cord.
If the error cannot be eliminated, request repair.

QError code: E2 - TS18141

A
Type of error
Power supply error
Cause of error
Insufficient contact of the power cord.
Failure of the power supply circuit.
Action
Securely re-connect the power cord.
If the error cannot be eliminated, request repair

QError code: E3 - TS18139

A
Type of error
Motor sensor error
Cause of error
Motor sensor failure.
Unplugged motor cord.
Motor cord (signal line) failure.
Ingress of water into the motor.
Action
Electrical contact may be insufficient.
Securely re-connect the motor cord.
If the error cannot be eliminated, request repair.
(Make sure to attach a protection plug when cleaning in a washer-disinfector.)

QError code: E4 - TS18154

A
Type of error
Control unit interior overheating error
Cause of error
Overheating by extended use under heavy load.
Use immediately after the control unit is placed at high temperature (such as inside a car under the blazing sun or in a locker exposed to direct sunlight).
Action
Allow it to cool down before use.
To allow heat to be sufficiently radiated, the periphery of the control unit should be well-ventilated wherever possible.
If the error cannot be eliminated, request repair.

QError code: E5 - TS18160

A
Type of error
Breaking error
Cause of error
Abnormal voltage generated in the start / stop switch circuit.
Failure in the start / stop switch circuit.
Action
When rotation and stop are repeated in a short period of time, a circuit to suppress the sudden acceleration at the start of rotation may be activated. Wait for a few seconds before use.
If the error cannot be eliminated, request repair.

QError code: E6 - TS18133

A
Type of error
Motor rotation failure error
Cause of error
Bur or drill attachment failure.
Handpiece failure.
Motor failure.
Action
The chuck may still be open, or not sufficiently closed. Securely close the chuck.
If the error cannot be eliminated, request repair.

QError code: E7 - TS18165

A
Type of error
Irrigation pump error
Cause of error
Incorrectly fitted irrigation tubing caught in the pump roller.
Irrigation pump failure.
Action
Check the irrigation tube.
If the error cannot be eliminated, request repair.

QError code: E8 - TS18163

A
Type of error
Bluetooth communication error
Cause of error
Failure of the Bluetooth communication circuit.
Action
Request repair.

QError code: E9 - TS18137

A
Type of error
Foot control error
Cause of error
Failure of the foot control sensor (Hall IC).
Self-check error.
Action
Request repair.

QError code: E10 - TS18159

A
Type of error
Motor LED error (Optic motor)
Cause of error
Adhesion of the saline solution to the motor LED.
Failure of LED circuit.
Action
Remove the saline solution completely. If the error cannot be eliminated, request repair.

QError code: E11 - TS18169

A
Type of error
Control panel error
Cause of error
Failure of the LCD display driver.
Failure of the electrostatic sheet.
Action
Request repair.

QError code: E12 - TS18156

A
Type of error
Link Module error
Cause of error
Failure of the link cable.
Failure of the Link Module circuit.
Failure of Bluetooth communication circuit in the Link Module.
Action
Turn off the VarioSurg 3 and re-connect the Link Module securely. If the error cannot be eliminated, request repair.

QError code: E13 - TS18167

A
Type of error
Osseo 100+ error
Cause of error
Affected by electromagnetic interference emitted by electronic equipment.
Failure of Bluetooth communication circuit in Osseo 100+.
Action
Keep sufficient distance between the tip of Osseo 100+ and electronic equipment. If the error cannot be eliminated, request repair.

QError code: E14 - TS21208

A
Type of error
External terminal error
Cause of error
OS of external terminal is not supported.
Failure of the external terminal.
Action
Check the supported OS in the application. Also, reinstall the application. If the error cannot be eliminated, request repair.

QProblem: Screen is blank. - TS21211

A
Cause of Problem1
Plug improperly inserted to power source
Action1
Check to make sure the plug is in.
Cause of Problem2
Malfunction of power switch
Action2
Request repair.

QProblem: The maximum rotation speed and “–” are alternately displayed on the speed display. - TS21214

A
Cause of Problem1
Power turned on while pressing the foot control
Action1
Remove foot from foot control.
Cause of Problem2
Foot control malfunction
Action2
If the problem is solved by removing the batteries, it is a foot control malfunction. If not, it is a control unit malfunction.
Please contact an authorized NSK dealer.
Cause of Problem3
Control unit malfunction
Action3
If the problem is solved by removing the batteries, it is a foot control malfunction. If not, it is a control unit malfunction.
Please contact an authorized NSK dealer.

QProblem: After the power is ON, “CONNECT” or “PUSH FC” is displayed and the screen is not switched. - TS21217

A
Cause of Problem
Foot control is not connected.
Action
Keep pressing the speed control pedal of the foot control while “PUSH FC” is displayed on the LCD display. If the screen does not change after 5 minutes, press and hold the Cancel key. The normal screen is displayed.
Refer to “3.2 Installing foot control batteries” and replace the foot control batteries to check if it can be connected.
If it cannot be connected after replacing the batteries, Refer to “7.1.1 Pairing with foot control” for pairing.
If this does not resolve the issue, please contact an authorized NSK dealer.

QProblem: Will not rotate even if the foot control is pressed. - TS21220

A
Cause of Problem1
Foot control is not connected.
Action1
Perform the following after confirming that nothing is blocking the signal between the foot control and control unit.
Turn the main unit power off and on again to connect to the control unit.
Refer to “3.2 Installing foot control batteries” and replace the foot control batteries with new ones.
Refer to “7.1.1 Pairing with foot control” and perform pairing.
If this does not resolve the issue, please contact an authorized NSK dealer.
Cause of Problem2
Foot control pedal and button response is poor due to not being used for a long period of time.
Action2
Refer to “6.3 Foot control calibration” and calibrate the foot control.
Cause of Problem3
Malfunction of control unit or foot control
Action3
If the problem is not solved by checking foot control batteries or foot control connection status, system repair is required.

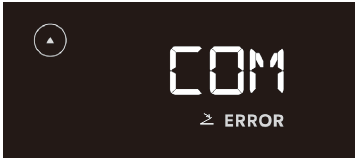

QProblem: “COM ERR FC” is displayed. - TS21223

A
Cause of Problem
Foot control not connected
Action
Press the Cancel key to cancel the error. After confirming that nothing is blocking the signal between the control unit and the foot control, wait for a while to check if the foot control is connected automatically. If it is not connected automatically, perform the following procedures.
Turn the control unit power off and on again to connect to the foot control.
Refer to “3.2 Installing foot control batteries” and replace the foot control batteries with new ones.
Refer to “7.1.1 Pairing with foot control” and perform pairing.
If this does not resolve the issue, please contact an authorized NSK dealer.

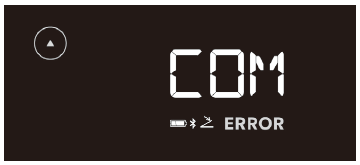

QProblem: “COM ERR LK” is displayed. - TS21226

A
Cause of Problem
Link Module not connected
Action
Press the Cancel key to cancel the error. After confirming that nothing is blocking the signal between the control unit and the Link Module, wait for a while to check if the Link Module is connected automatically. If it is not connected automatically, perform the following procedures.
• Turn off and on both this product and VarioSurg 3 connected to this product .
• Refer to the Link Module manual and try the pairing again.
If this does not resolve the issue, please contact an authorized NSK dealer.

QProblem: “COM ERR OS” is displayed. - TS21229

A
Cause of Problem
Osseo 100+ not connected
Action
Press the Cancel key to cancel the error. After confirming that nothing is blocking the signal between the control unit and Osseo 100+, wait for a while to check if Osseo 100+ is connected automatically. If it is not connected automatically, perform the following procedures.
• Turn off and on both this product and Osseo 100+ connected to this product.
• Charge the battery sufficiently with the Osseo 100+ charger and try the automatic connection again.
• Refer to the Osseo 100+ manual and try the pairing again.
If this does not resolve the issue, please contact an authorized NSK dealer.

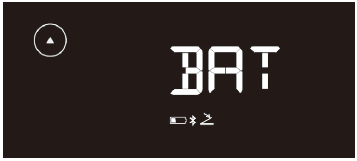

QProblem: “BATTERY FC” is displayed. - TS21232

A
Cause of Problem
Foot control battery is low
Action
Depress the speed control pedal of the foot control or press the Cancel key to cancel the error.
Replace the batteries.
If this does not resolve the issue, please contact an authorized NSK dealer.

QProblem: “BATTERY OS” is displayed. - TS21235

A
Cause of Problem
Osseo 100+ battery is low
Action
Depress the speed control pedal of the foot control or press the Cancel key to cancel the error.
Charge the battery sufficiently with the Osseo 100+ charger and try the automatic connection again.
If this does not resolve the issue, please contact an authorized NSK dealer.

Hygiejne og Vedligeholdelse

iCare

QNo Power. - TS18927

A
Cause1
The power lead is not plugged in.
Remedy1
Check the connection.
Cause2
The power lead is not connected to the iCare.
Remedy2
Check the connection.
Cause3
The iCare is not switched ON.
Remedy3
Turn ON the black power switch (right side of iCare).
Cause4
The internal fuse has blown.
Remedy4
Replace the fuse.

QThe device does not operate. - TS18931

A
Cause1
Oiling ports (1-4) are no switched on (the Connector LED is OFF).
Remedy1
Press one or more of the oiling ports.
Cause2
The door is OPEN before or during operation.
Remedy2
Close the door.
Cause3
The door is CLOSED before Chuck Lubrication.
Remedy3
Open the door before Chuck Lubrication.
Cause4
Oil chamber is empty (Error LED (Oil) lights up).
Remedy4
Fill with NSK iCare maintenance oil.
Cause5
Air is not supplied. Or the air pressure is low (Error LED (Air Pressure) lights up).
Remedy5
Check air supply and air pressure.
Cause6
The room temperature is too low.
Remedy6
The iCare will operate in temperatures of 10 - 40°C. Especially in winter, wait until the room temperature reaches the operating temperature.

QOil and air do not come out of the Chuck Lubricating Nozzle. - TS18932

A
Cause
The hole of the Chuck Lubricate Nozzle is clogged with debris.
Remedy
Remove dirt in the hole using a brush (Do not use a metal brush).
